swan.ai.carClassify

解释 :用于检测一张车辆图片的具体车型,即对于输入的一张图片(可正常解码,且长宽比适宜),输出图片的车辆品牌及型号、颜色及年份、位置信息。

# 方法参数

Object object

# object参数说明

属性名 类型 必填 默认值 说明
image String - 图像资源地址
top_num Number 5 返回结果 top n,默认 5。
success Function 接口调用成功的回调函数
fail Function 接口调用失败的回调函数
complete Function 接口调用结束的回调函数(调用成功、失败都会执行)

# success 返回参数说明

参数 类型 说明
log_id Number 唯一的 log id,用于问题定位
color_result string 颜色
result Array 车型识别结果数组
location_result Object 车在图片中的位置信息

# result 返回值说明

参数名 参数类型 说明
name String 车型名称,示例:宝马 x6
score Number 置信度,示例:0.5321
year String 年份

# location_result 返回值说明

参数名 参数类型 说明
left Number 左起像素位置
top Number 上起像素位置
width Number 像素宽
height Number 像素高

# 示例

扫码体验
重新加载
请使用百度APP扫码

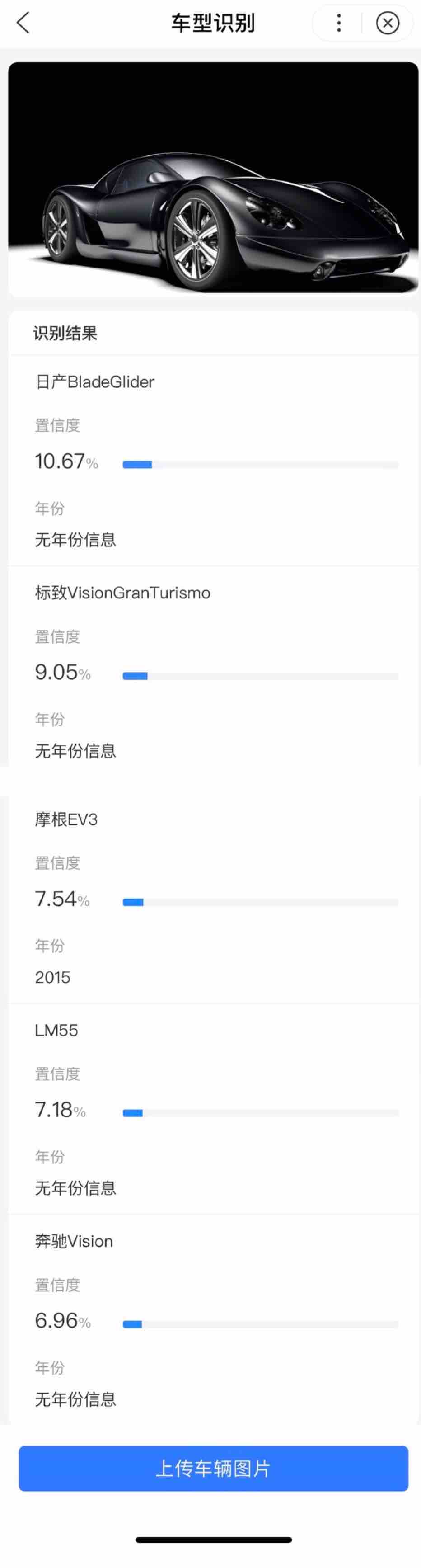

# 图片示例

# 代码示例

    <view class="wrap">
        <view class="card-area" style="height:2.1rem">
            <image mode="aspectFill" class="display-area-image" src="{{image}}"></image>
        </view>
        <view class="card-area" style="margin-bottom: 1.2rem;">
            <view s-if="!loading" class="top-description border-bottom">识别结果</view>
            <view s-if="result.length>0">
                <view s-if="!loading">
                    <view s-for="item in result" class="list-area border-bottom">
                        <view class="reasult-keyword">{{item.name}}</view>
                        <view class="reasult-score">
                            <view class="score-title">置信度</view>
                            <view style="display:inline-block">
                                <view class="score-info">{{item.score}}<text class="percent">%</text></view>
                                <view class="score-percent">
                                    <view class="percent-front {{item.score===100?'percent-100':''}}" style="width:{{item.score}}%;"></view>
                                </view>
                            </view>
                        </view>
                        <view class="score-title">年份</view>
                        <view class="root-info">{{item.year}}</view>
                    </view>
                </view>
            </view>
            <view s-else>
                <view s-if="!loading">
                    <view class="result-area">
                        <view class="result-area-fail">未检测到车辆</view>
                        <view class="result-area-tips">请上传包含车辆的清晰图片</view>
                    </view>
                </view>
            </view>
        </view>
         <view class="swan-security-padding-bottom flex-button">
            <button type="primary" hover-class="button-hover" disabled="{{loading}}" bindtap="carClassify">上传车辆图片</button>
        </view>
    </view>

    Page({
        data: {
            loading: true,
            isLoad: false,
            image: 'https://b.bdstatic.com/miniapp/images/carClassify.png',
            result: [
                {score: '10.67', name: '日产BladeGlider', year: '无年份信息'},
                {score: '9.05', name: '标致VisionGranTurismo', year: '无年份信息'},
                {score: '7.54', name: '摩根EV3', year: '2015'},
                {score: '7.18', name: 'LM55', year: '无年份信息'},
                {score: '6.96', name: '奔驰Vision', year: '无年份信息'}
            ]
        },
        onShow() {
            if (!this.data.isLoad) {
                swan.showToast({
                    title: '识别中...',
                    icon: 'loading',
                    duration: 1000
                });
                this.setData({
                    loading: true
                });

                setTimeout(() => {
                    this.setData({
                        loading: false
                    });
                    this.data.isLoad = true;
                }, 1000);
            }
        },
        carClassify() {
            if (this.getData('loading')) {
                return;
            }
            swan.showActionSheet({
                itemList: ['拍照', '从手机相册选择'],
                success: res => {
                    const sourceType = res.tapIndex === 0 ? 'camera' : 'album';
                    swan.chooseImage({
                        count: 1,
                        sizeType: ['original', 'compressed'],
                        sourceType: [sourceType],
                        success: res => {
                            const image = res.tempFilePaths[0];
                            this.setData({image, loading: true});
                            swan.showToast({
                                title: '识别中...',
                                icon: 'loading',
                                duration: 20000
                            });
                            swan.ai.carClassify({
                                image,
                                top_num: 5,
                                success: res => {
                                    console.log('carClassify success', res);
                                    this.setImageData(res.result);
                                },
                                fail: err => {
                                    console.log('carClassify fail', err);
                                },
                                complete: () => {
                                    swan.hideToast();
                                    this.setData('loading', false);
                                }
                            });
                        },
                        fail: err => {
                            console.log('chooseImage fail', err);
                        }
                    });
                }
            });
        },
        setImageData(data) {
            const len = data.length - 1;
            for (let i = len; i >= 0; i--) {
                if (data[i].name === '非车类') {
                    data.splice(i, 1);
                }
                else {
                    if (data[i].score && !isNaN(data[i].score)) {
                        data[i].score = (data[i].score * 100).toFixed(2);
                        if (data[i].score > 100) {
                            data[i].score = 100;
                        }
                    }
                    else {
                        data[i].score = 0;
                    }
                }
            }
            this.setData('result', data);
        }
    });


    # 返回值示例

    {
        "log_id": $log_id,
        "location_result": {
            "width": 434,
            "top": 119,
            "height": 246,
            "left": 110
        },
        "result": [
            {
                "score": 0.99993008375168,
                "name": "宝马X3",
                "year": "2016"
            },
            {
                "score": 0.00005255633732304,
                "name": "宝马X4",
                "year": "2015-2016"
            },
            {
                "score": 0.0000031432850846613,
                "name": "SWM斯威X7",
                "year": "2016-2017"
            },
            {
                "score": 0.0000012879694395451,
                "name": "宝马X5",
                "year": "2016-2017"
            },
            {
                "score": 5.6126202707674e-7,
                "name": "丰田汉兰达",
                "year": "2015-2017"
            },
            {
                "score": 4.4069730620322e-7,
                "name": "斯柯达速尊",
                "year": "2014-2016"
            },
            {
                "score": 4.0618823504701e-7,
                "name": "宝马X1",
                "year": "2017"
            }
        ],
        "color_result": "白色"
    }
